Grand Meyer® HE-TS

The Grand Meyer HE-TS kit is used for heating household water supply systems and sewer pipes to protect them from freezing and also for heating drainage systems of air conditioners to protect water condensate from freezing, as well can be used for soil heating of small areas.

The HE-TS kit uses a self-regulating cable as a heating element, so the product never overheats even when the heating cable crosses itself and automatically adjusts the heating temperature depending on the ambient temperature. Thanks to this, the HE-TS kit can be used on pipes with different temperature conditions (part of the pipe is outside, part is in the basement of the house).

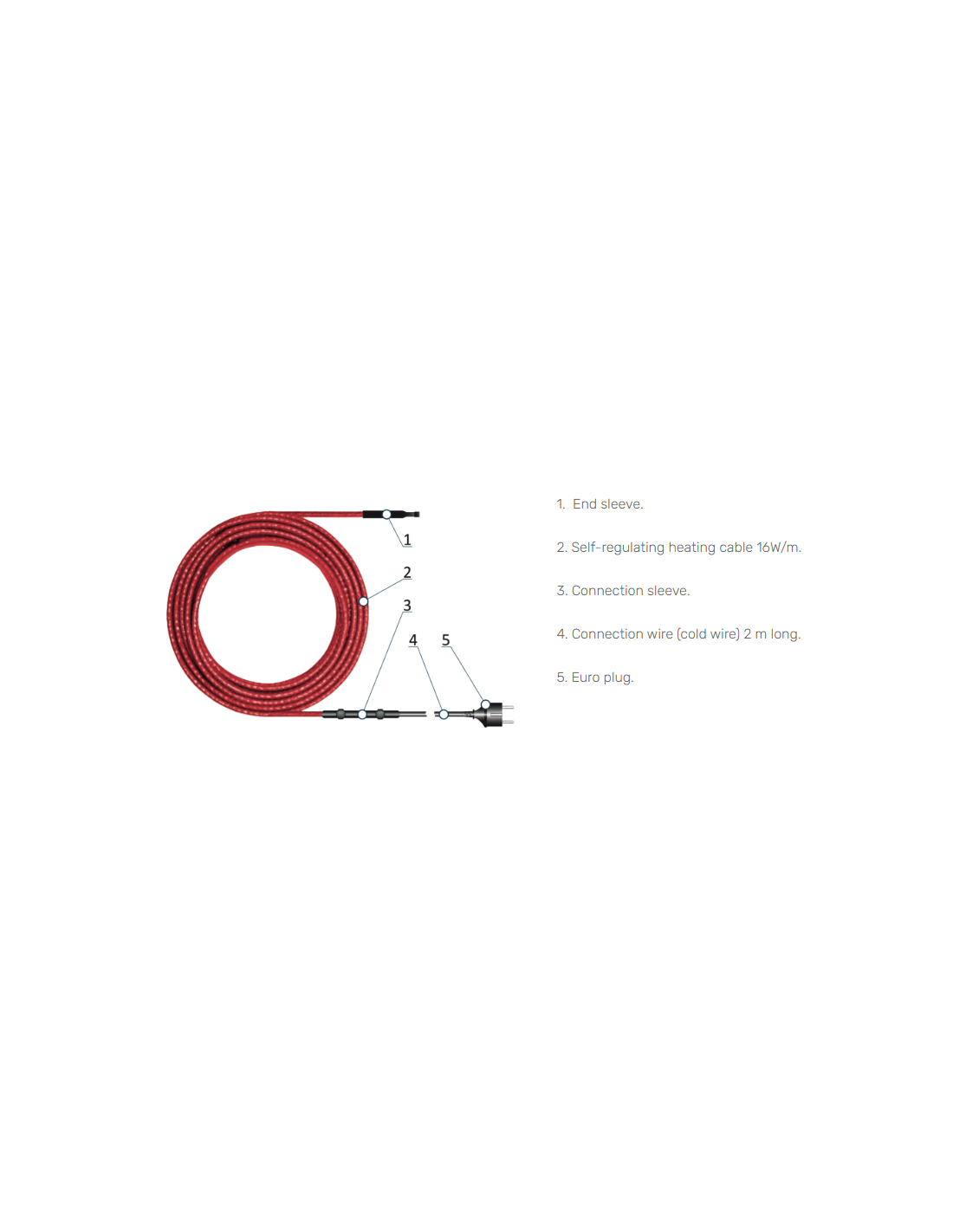

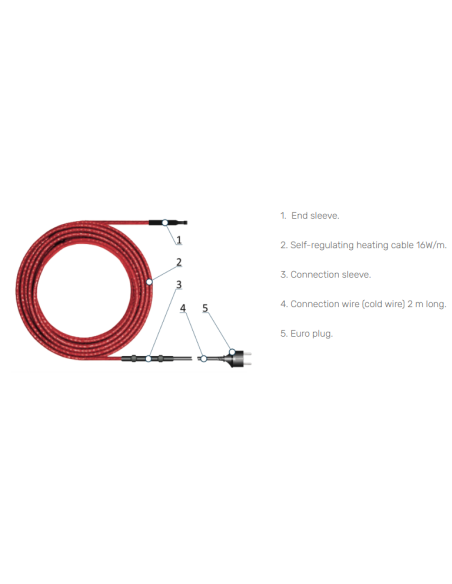

1.  End sleeve.

2. Self-regulating heating cable 16W/m.

3. Connection sleeve.

4. Connection wire (cold wire) 2 m long.

5. Euro plug.

The kit uses a self-regulating shielded heating cable with a linear power of 16 W/m under normal conditions. Cable couplings are manufactured at the factory with increased tightness. In the manufacture of couplings. The 2m long connection wire (cold wire) has silicone insulation.

The HE-TS kit is not intended for:​

•To heat the product during its transportation through the pipeline.

•To heat up the product when the pipeline is already frozen.
