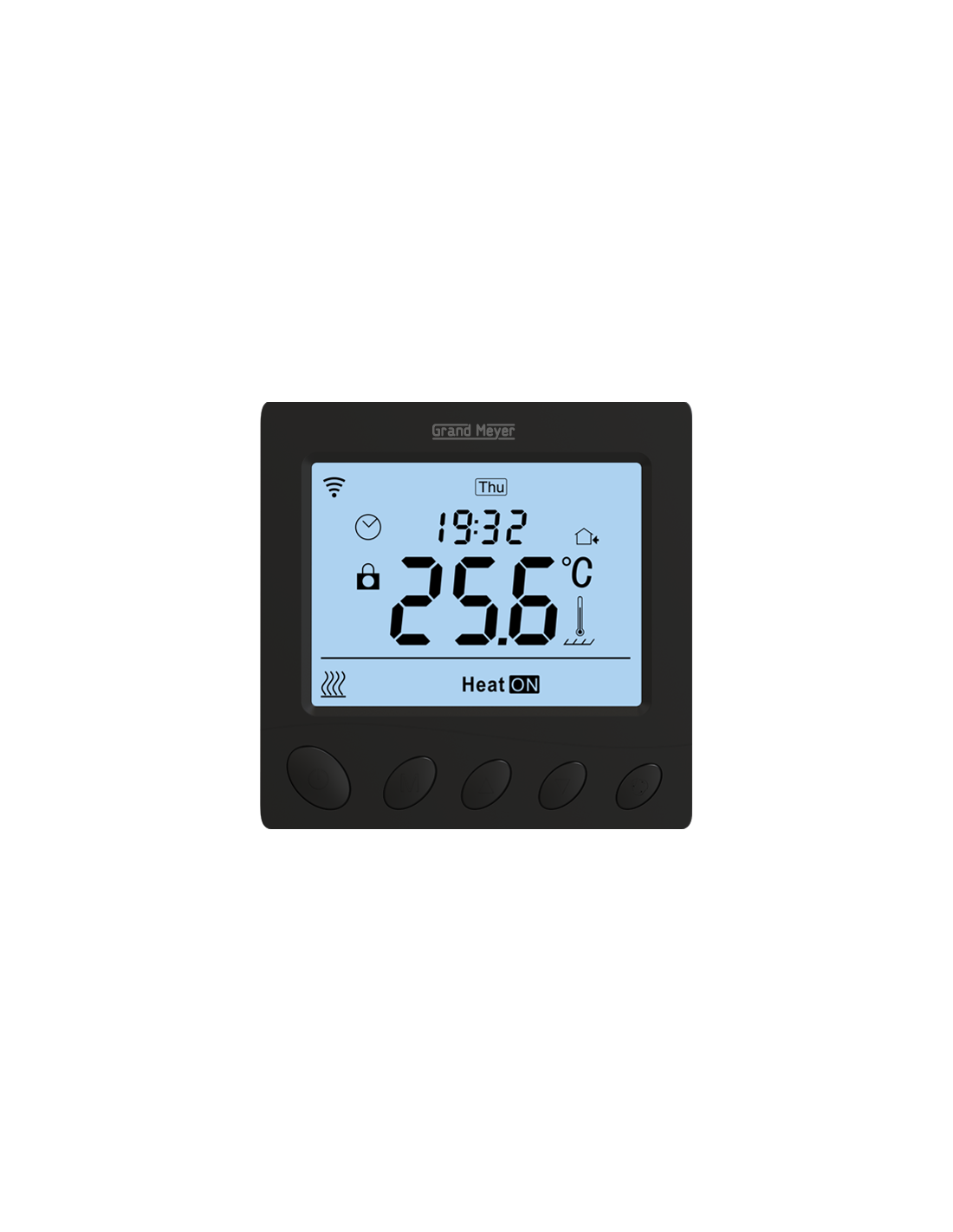

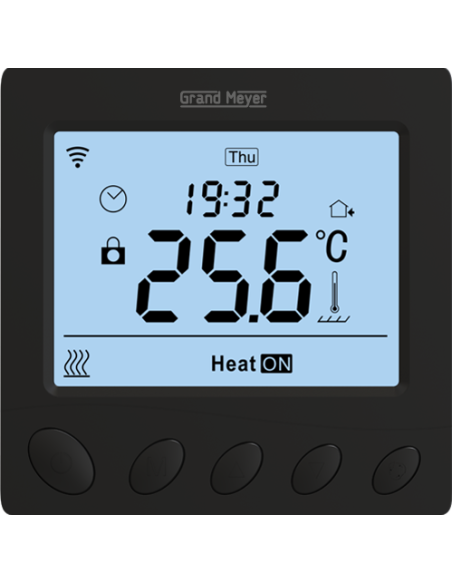

Floor thermostat W390 Wi-Fi
8268018
In stock!
€37.04
VAT included
1-3 working days
W390 Wi-Fi
Earn 3.70 points/€0.37
(Each €10.00 spent = 1 point, 1 point = €0.10 discount)Your cart will total 3.7 points that can be converted into a voucher of €0.37.
Programmable temperature controller with Wi-Fi remote access for underfloor heating control. The temperature controller automatically maintains the set temperature of the heated surface according to the readings of the floor temperature sensor (included in the delivery set) or according to the readings of the ambient build-in air temperature sensor, or a combination of both sensors. The temperature controller has 2 body colors: white and ivory. The temperature controller W390 is adapted for hidden (recessed) mounting in a socket of a standard mounting box.
|
SPECIFICATIONS
|
|
|---|---|
|
Power supply
|
~230V (-15%, +10%), 50Hz
|
|
Switched current / Power
|
16 A / 3.6 kW
|
|
Power consumed by the regulator with the load switched off, no more
|
2 W
|
|
Regulatory principle
|
On / Off
|
|
Output relay
|
trailing
|
|
Operating temperature
|
from -5⁰С to +50⁰С
|
|

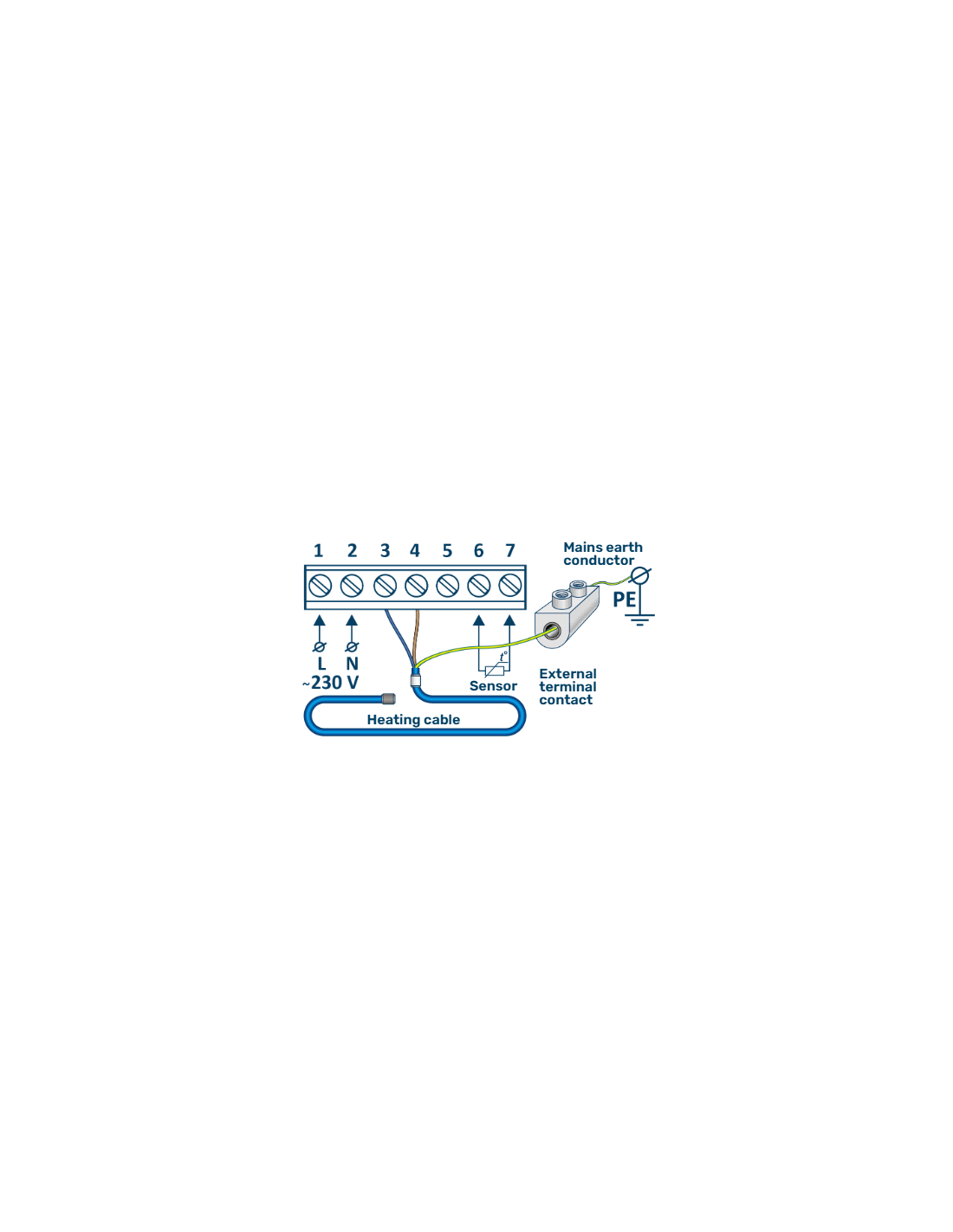

Temperature sensors
|
Built-in and external
|
|
Temperature control limits
|
from +5⁰С to +95⁰С (factory from +5⁰С to +35⁰С)
|
|
Hysteresis (configurable)
|
from 0.5⁰С to 10⁰С
|
|
Remote sensor resistance
|
10kOhm at +25⁰С
|
|
Remote sensor connecting cable length
|
3 m
|
|
Frost protection function
|
Yes
|
|
Programming mode
|
5+2/6+1/7 days
|
|
Wi-Fi network settings
|
802.11b/g/n, 2.4GHz
|
|
Mobile App Compatibility
|
Android, iOS
|
|
Body material
|
Self-extinguishing PVC
|
|
Degree of protection
|
IP20
|
|

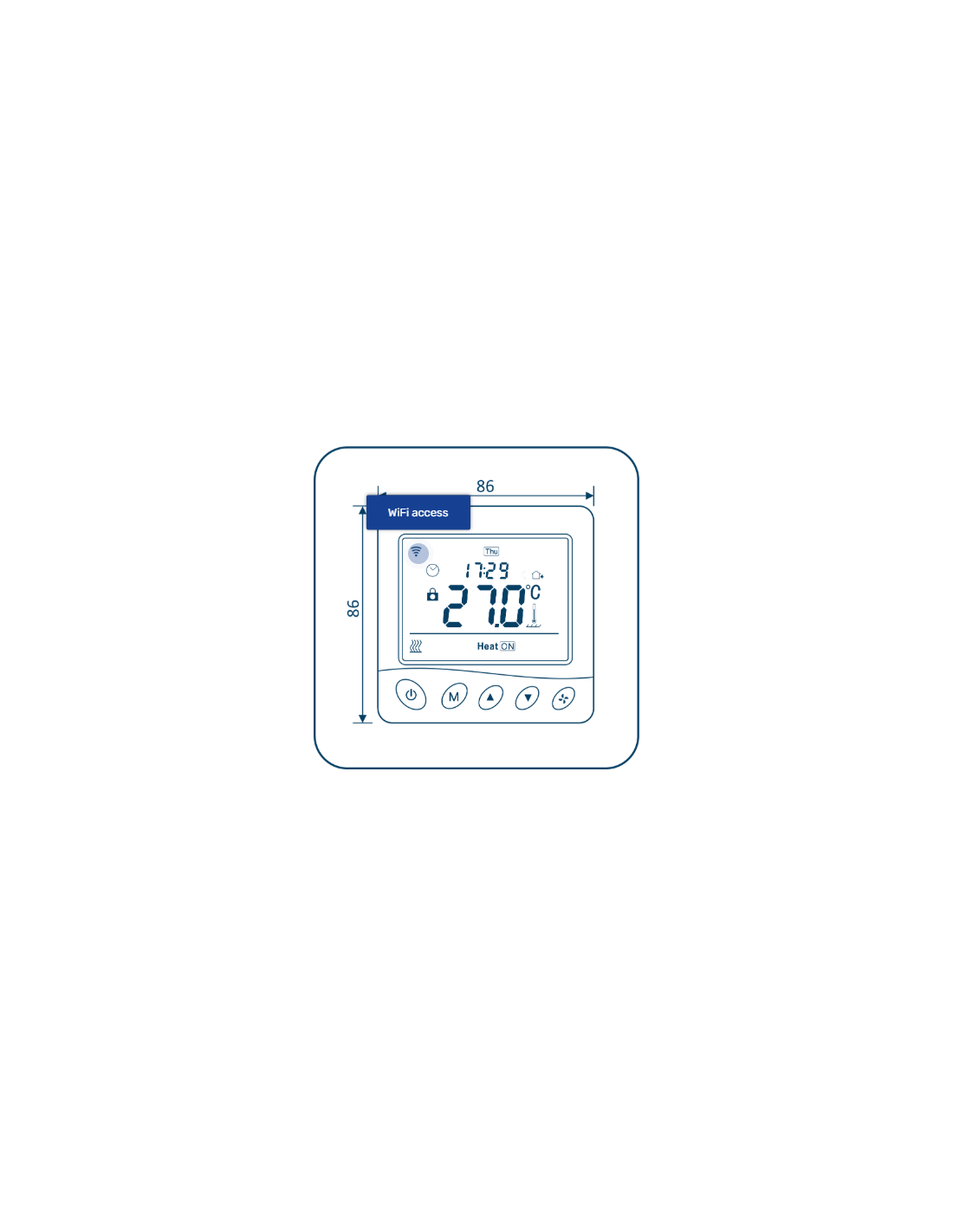

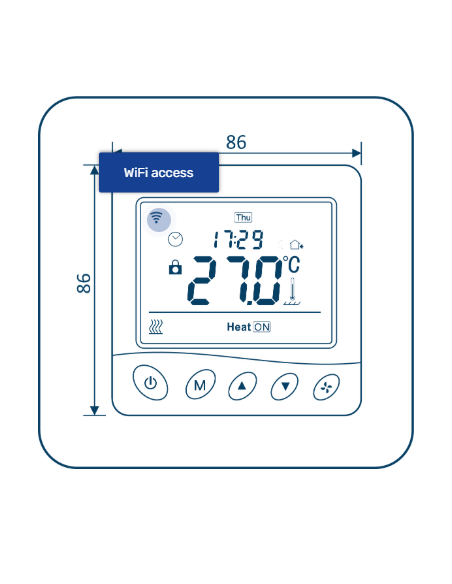

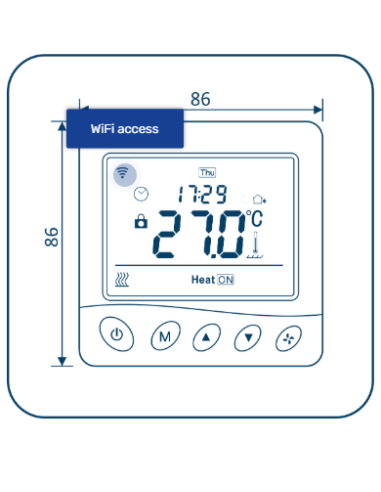

Assembly dimensions
|
86(H) x 86(W) x 46(D) mm
|
|
Body color
|
Black
|
|
Weight
|
135 g
|
|
Warranty
|
2 year
|
|
Certified
|
СЕ, ЕАС
|
