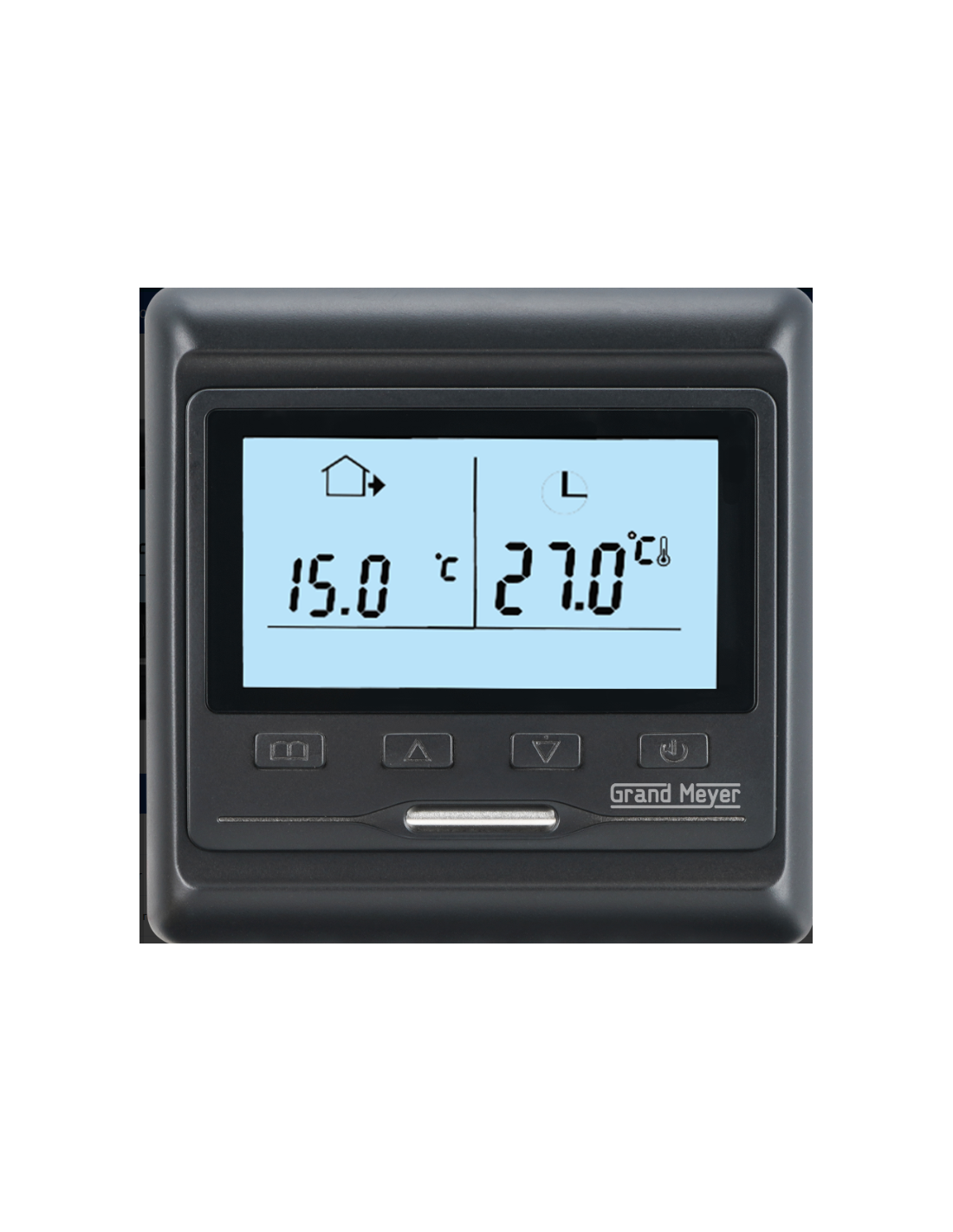

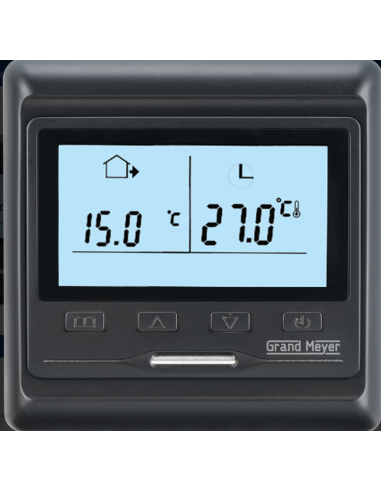

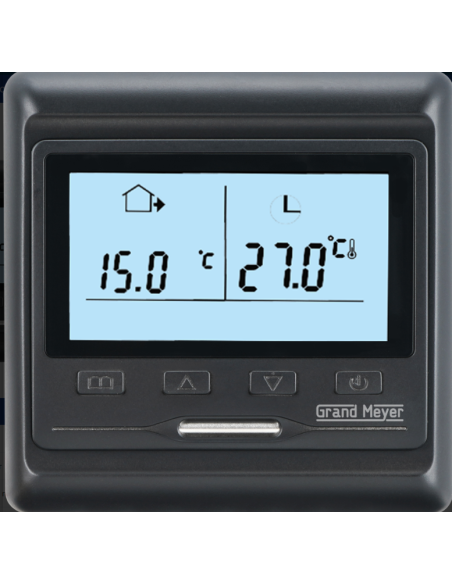

Grand Meyer® HW800 Programmable temperature controller
8268016
In stock!
€18.48
VAT included
1-3 working days
HW800

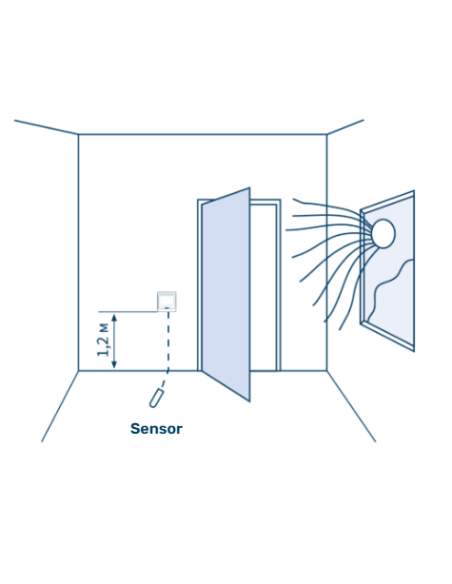

Programmable temperature controller with an updated design for underfloor heating control. Possibility of programmable and manual control. Possibility to set a weekly period of 5+2/6+1/7 days. Memory settings when power off. Built-in temperature sensor and external NTC sensor 3 m long. Maximum load up to 16A. HW800 has black body color. The temperature controller controls the operation of the underfloor heating according to the readings of the floor temperature sensor (included in the delivery set) or according to the readings of the ambient air temperature build-in sensor, or a combination of both sensors. The temperature controller HW-800 is designed for hidden (recessed) mounting in the socket of the mounting box.
|
SPECIFICATIONS
|
|
|---|---|
|
Power supply
|
~230V (-15%, +10%), 50Hz
|
|
Switched current/power
|
16 A / 3.6 kW
|
|
Power consumed by the regulator with the load switched off, no more
|
2 W
|
|
Regulatory principle
|
On / Off
|
|
Output relay
|
trailing
|
|
Operating temperature
|
from -5⁰С to +50⁰С
|
|
Temperature sensors
|
Built-in and external
|
|
Temperature control limits
|
from +5⁰С to +95⁰С (factory from +5⁰С to +35⁰С)
|
|
Hysteresis (configurable)
|
from 0.5⁰С to 10⁰С
|
|
Remote sensor resistance
|
10kOhm at +25⁰С
|
|
Remote sensor connecting cable length
|
3m
|
|
Frost protection function
|
Yes
|
|
Programming mode
|
5+2/6+1/7 days
|
|
Body material
|
Self-extinguishing PVC
|
|
Degree of protection
|
IP20
|
|

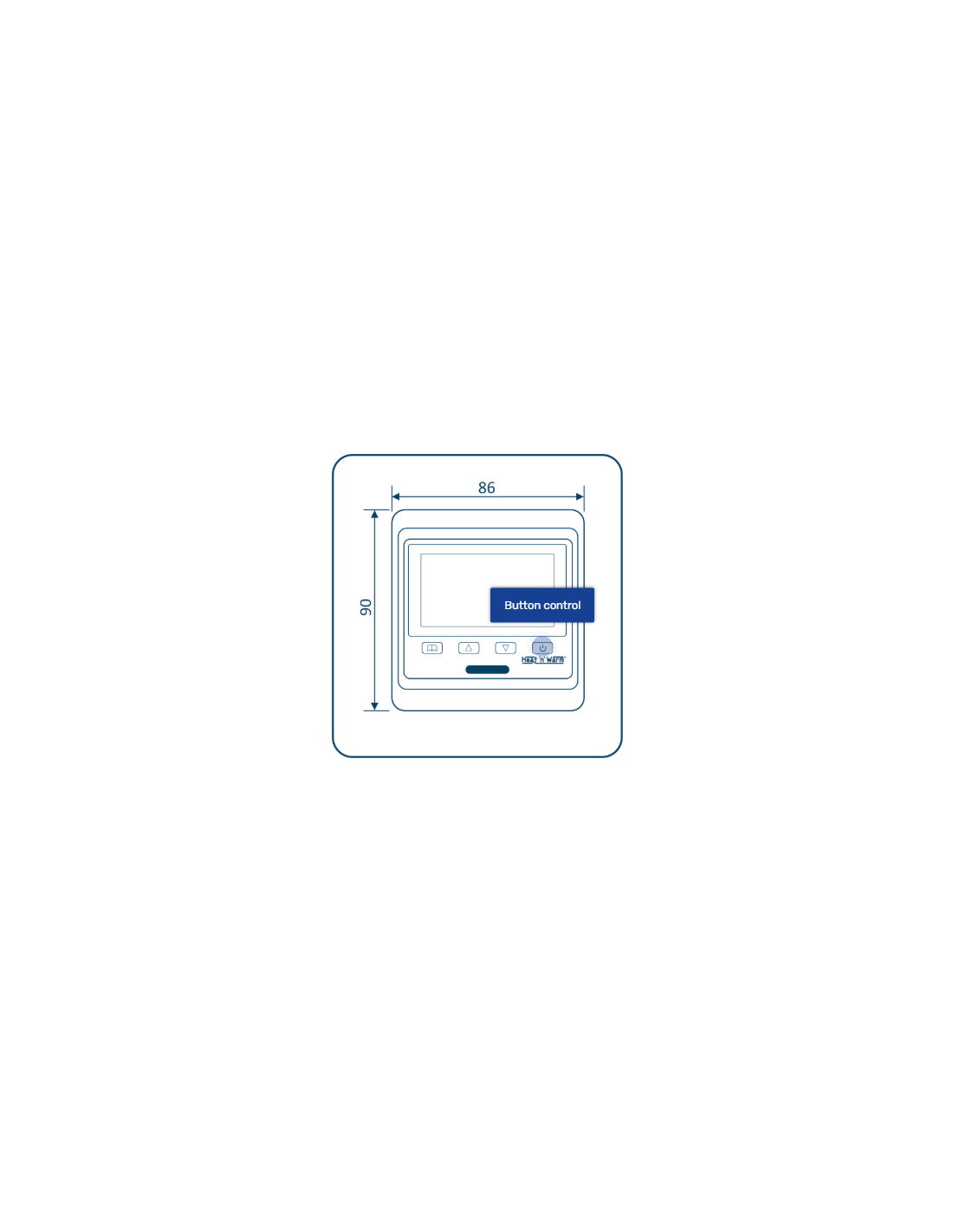

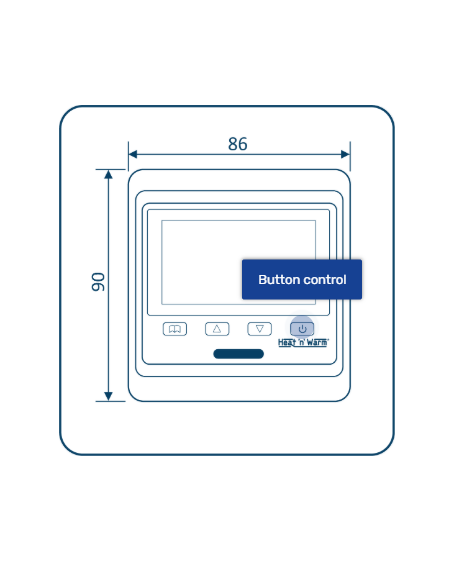

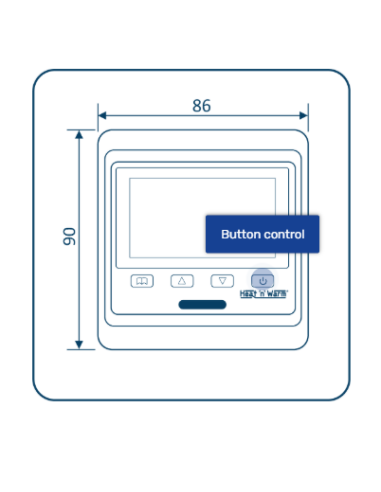

Assembly dimensions
|
90 (H) x 86 (W) x 43 (D) mm
|
|
Body color
|
Black
|
|
Weight
|
142 g
|
|
Warranty
|
2 Year
|
|
Certified
|
СЕ, ЕАС
|
Earn 1.85 points/€0.19
(Each €10.00 spent = 1 point, 1 point = €0.10 discount)Your cart will total 1.85 points that can be converted into a voucher of €0.19.
Programmējams temperatūras regulators grīdas apsildei ar manuālu un automātisku vadību. Iespēja iestatīt nedēļas režīmu: 5+2 / 6+1 / 7 dienas. Saglabā iestatījumus strāvas zuduma gadījumā. Iebūvēts temperatūras sensors un NTC sensors (3m garš). Maksimālā slodze – 16A. Termoregulators pieejams divās krāsās: balts un melns. Darbojas pēc grīdas sensora (iekļauts komplektā), iebūvētā gaisa temperatūras sensora vai abu sensoru kombinācijas. Montāža – slēpta (iebūvēta) montāžas kārbā.
