Grand Meyer® MST-1

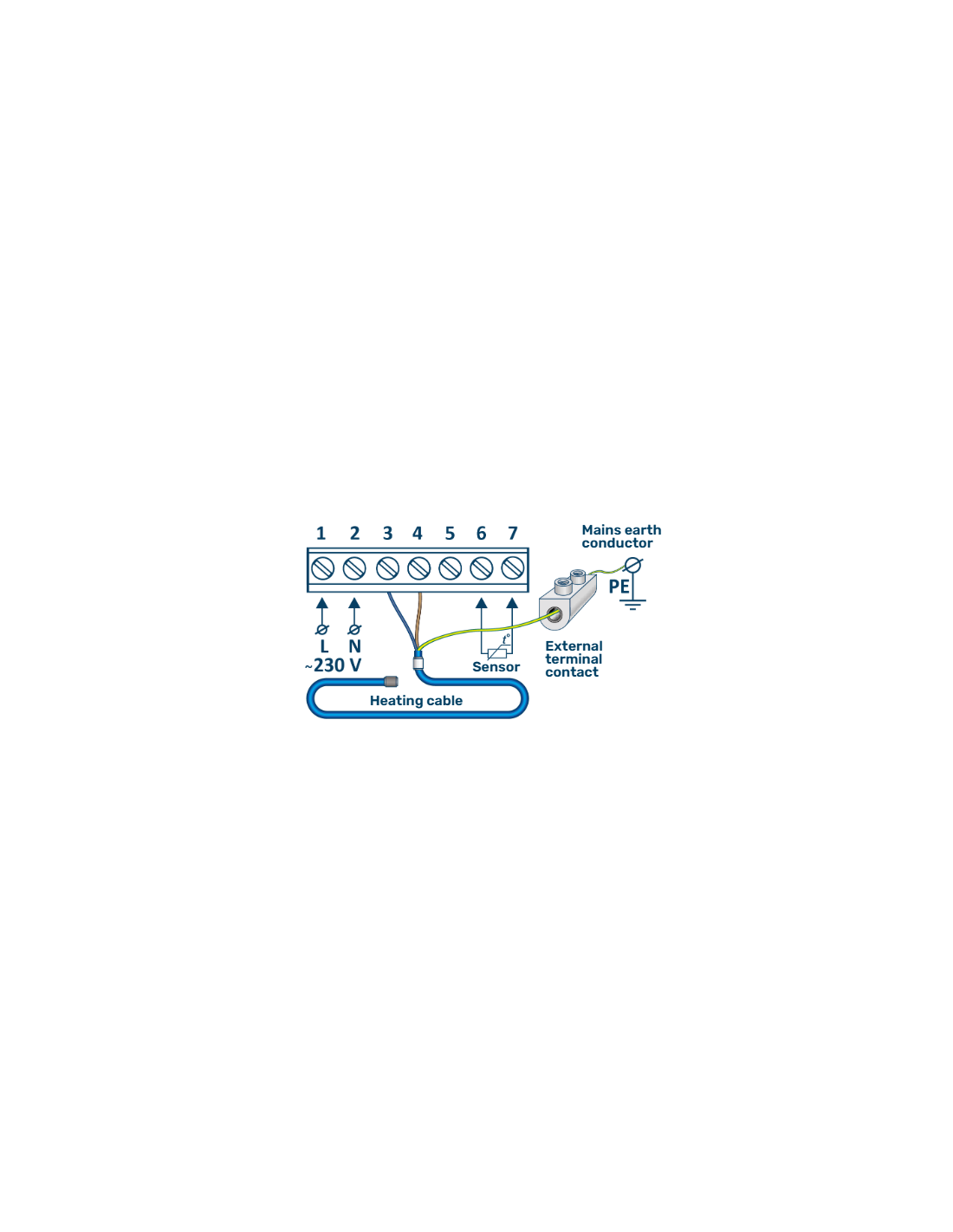

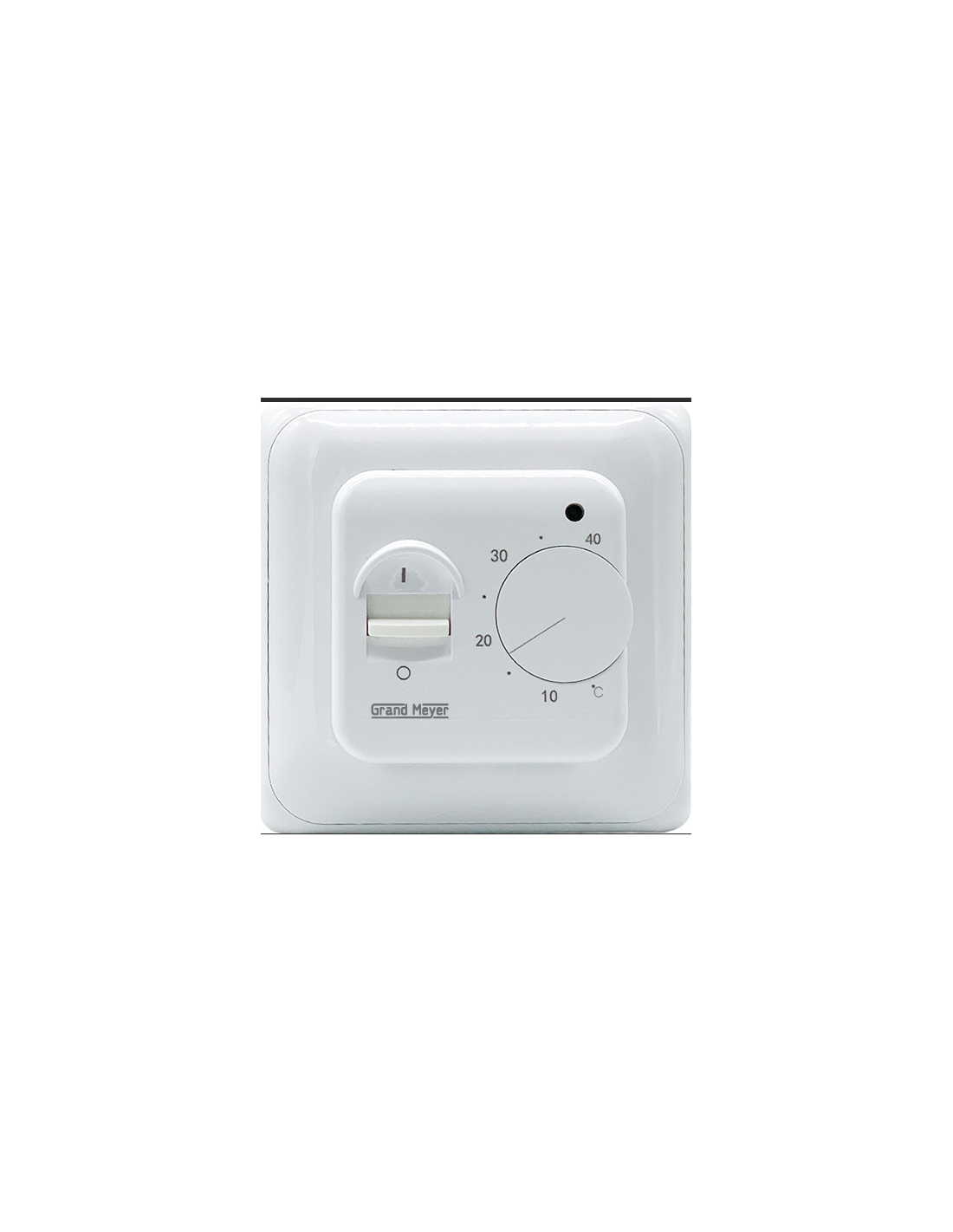

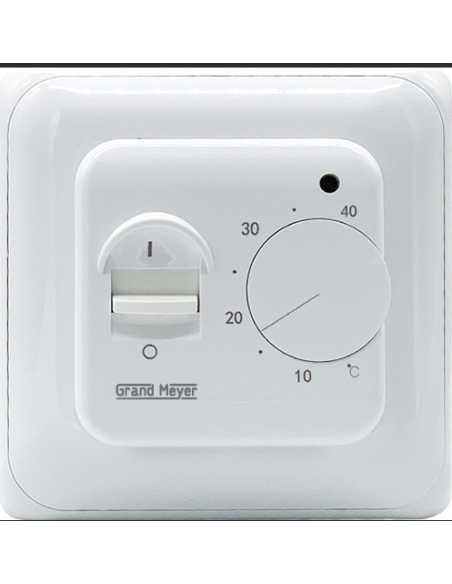

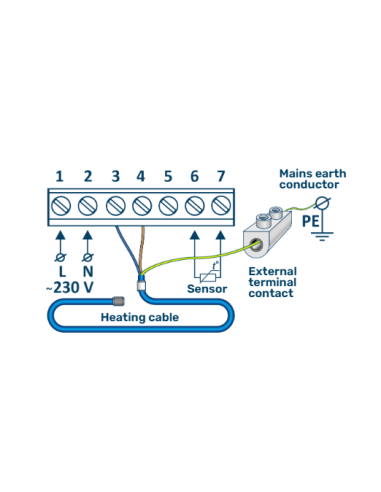

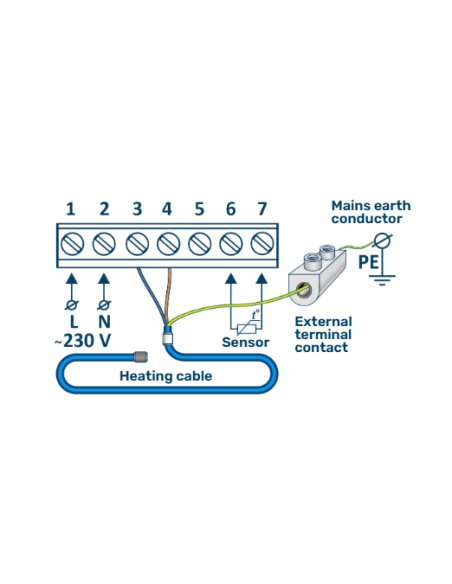

A simple and reliable electronic temperature controller for underfloor heating control is used in cases where programming is not required. It has a separate power switch and LED indication of underfloor heating operation. It is completed with a temperature sensor (NTC, 10 kOhm), which is installed in the floor between the coils of the heating cable. The length of the sensor wire is 3m. The temperature controller controls the load up to 16A. Available in two colors: white and ivory. The temperature controller is designed for hidden (recessed) mounting in the socket of the mounting box.
|
SPECIFICATIONS
|
|
|---|---|
|
Power supply
|
~230V (-15%, +10%), 50Hz
|
|
Switched current/power
|
16 A / 3.6 kW
|
|
Power consumed by the regulator with the load switched off, no more
|
5 W
|
|
Regulatory principle
|
On / Off
|
|
Output relay
|
trailing
|
|
Load indicator
|
Red LED
|
|
Operating temperature
|
from -5⁰С to +50⁰С
|
|
Temperature control limits
|
from +5⁰С to +40⁰С
|
|
Temperature drop that activates the heating element (hysteresis)
|
0.5⁰С
|
|
Temperature sensor
|
External
|
|
Sensor resistance
|
10kOhm at +25⁰С
|
|
Sensor connecting cable length
|
3m
|
|
Body material
|
Self-extinguishing PVC
|
|
Degree of protection
|
IP20
|
|

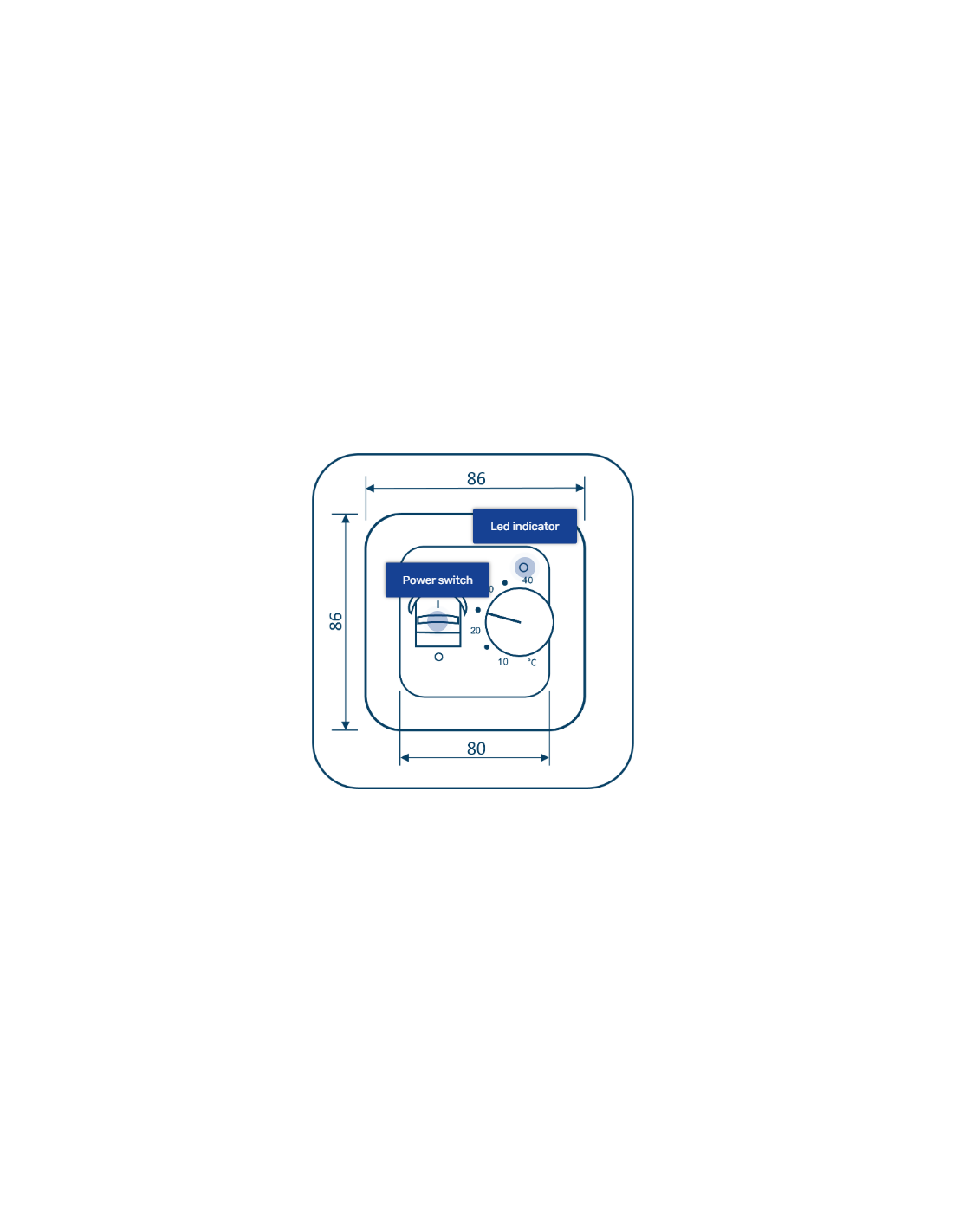

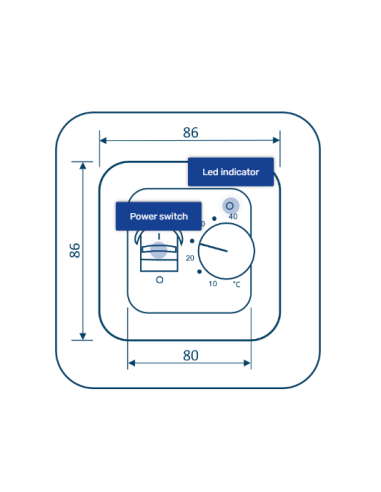

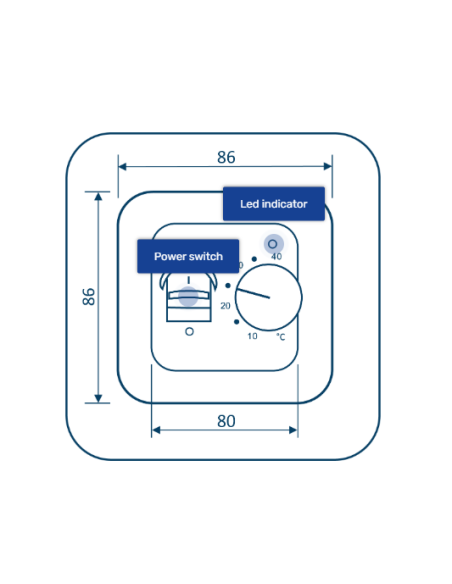

Assembly dimensions
|
86(H) x 86(W) x 50(D) mm
|
|
Case color
|
White or ivory
|
|
Weight
|
90 g
|
|
Warranty
|
2 year
|
|
Certified
|
СЕ, ЕАС
|
Earn 0.80 point/€0.08
(Each €10.00 spent = 1 point, 1 point = €0.10 discount)Your cart will total 0.8 points that can be converted into a voucher of €0.08.
Vienkāršs un uzticams elektroniskais temperatūras regulators grīdas apsildes vadībai tiek izmantots gadījumos, kad programmēšana nav nepieciešama. Tam ir atsevišķs ieslēgšanas/izslēgšanas slēdzis un LED indikācija par grīdas apsildes darbību. Komplektā ietilpst temperatūras sensors (NTC, 10 kΩ), kas tiek uzstādīts grīdā starp apsildes kabeļa vijumiem. Sensora vada garums – 3m. Regulators kontrolē slodzi līdz 16A. Pieejams divās krāsās: balts un melns. Termoregulators ir paredzēts slēptai (iebūvētai) montāžai standarta montāžas kārbā.
