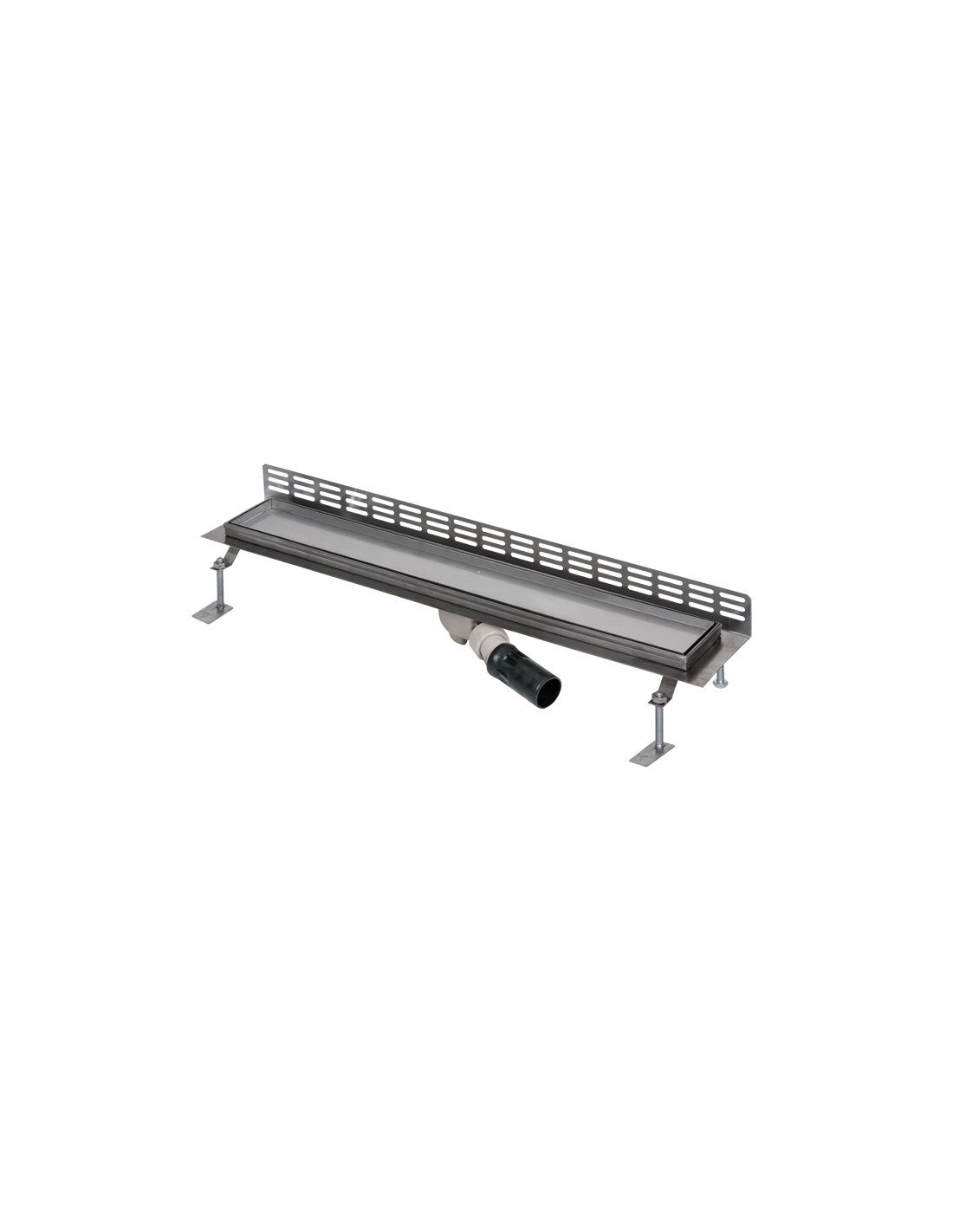

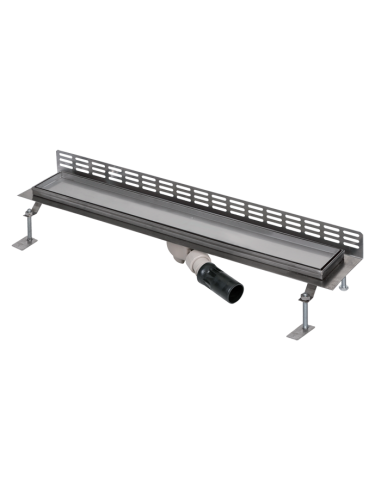

BATHROOM DRAIN

• length L = 850 mm
• collar serves for a tight and reliable connection to hydro-isolation
• collar with the frame sealed up against the moisture
• mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
• 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
• side bends for better stability
• bond screw for connection with bonding conductor
• different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
• load class K3 (till 300 kg)
• material AISI-304

WASTE OUTLET

• plastic siphon DN 50 mm
• according to the norm DIN EN 274; rate of flow 42 l/min
• possibility od adjustment of the direction and the slope of the drain to 20
• different siphon positions could be made to order
